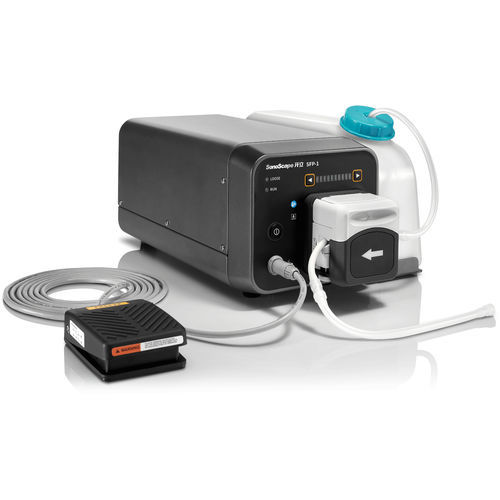

SFP-1 Irrigation Pump
Clear visualization starts with a clear procedural field. The SonoScape SFP-1 Endoscopic Irrigation Pump provides controlled water delivery through the dedicated water-jet channel of compatible endoscopes, helping physicians clear blood, mucus, debris, and other material that can interfere with visualization during diagnostic and therapeutic procedures. With ten levels of adjustable flow, automatic flow-setting memory, footswitch operation, and integrated safety monitoring, the SFP-1 puts irrigation immediately within the procedural workflow while allowing the endoscopist to maintain control of the scope and accessory channel.
Highlights
- Clear the Field Without Sacrificing the Working Channel: Designed specifically for endoscopes equipped with a dedicated water jet, the SFP-1 provides irrigation independently of the primary instrument channel—allowing the physician to wash the mucosal surface while maintaining working-channel access for suction and compatible therapeutic accessories.
- Ten Levels of Flow Control: Adjustable irrigation across ten flow settings allows water delivery to be tailored to procedural requirements, from controlled mucosal cleansing to more aggressive clearance when blood, mucus, or debris obstructs visualization. Automatic flow memory recalls the selected setting for a more consistent workflow.
- Irrigation When You Need It: Footswitch control allows water delivery to be activated without taking the physician’s hands away from the endoscope controls, providing immediate irrigation while maintaining procedural focus. Flow capability of up to 270 mL/min provides the performance needed across routine and therapeutic procedures.
- Built-In Protection During Operation: The SFP-1 automatically stops water delivery after 20 seconds of continuous operation and provides audible and visual warnings if the pump head becomes dislodged. Dedicated indicators provide at-a-glance confirmation of power, active operation, and pump-head status.
| Specification | SFP-1 |
|---|---|
| Flow Control | 10 Adjustable Levels |
| Flow Rate | 0-270 ml/min |
| Maximum Pressure | 400 kPa |
| Flow Recall | Automatic |
| Continuous Delivery | 20 sec |
| Control | Foot Pedal |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Dimensions | 246 x 393 x 177 mm |
- Instructions For Use (IFU)
- HD-550 Brochure (PDF)
- Quick Start Guide (PDF)
Quality Clearing of the Endoscopic Field
- 10-Level Adjustable Irrigation Flow
- Up to 270 mL/min Water Delivery
- Automatic Flow-Setting Memory
- Hands-Free Footswitch Control
- 20-Second Auto-Stop Safety Protection
